Prerequisites

1. Mikrotik device that supports 802.11u. Make sure to use the latest long-term or stable RouterOS releases.
2. Information about the assigned RADIUS servers (Server IP address, port numbers, shared secrets):
   1. Email or document that contains this information

      OR


   2. Access to the IronWiFi Management Console - Sign in or Open Account

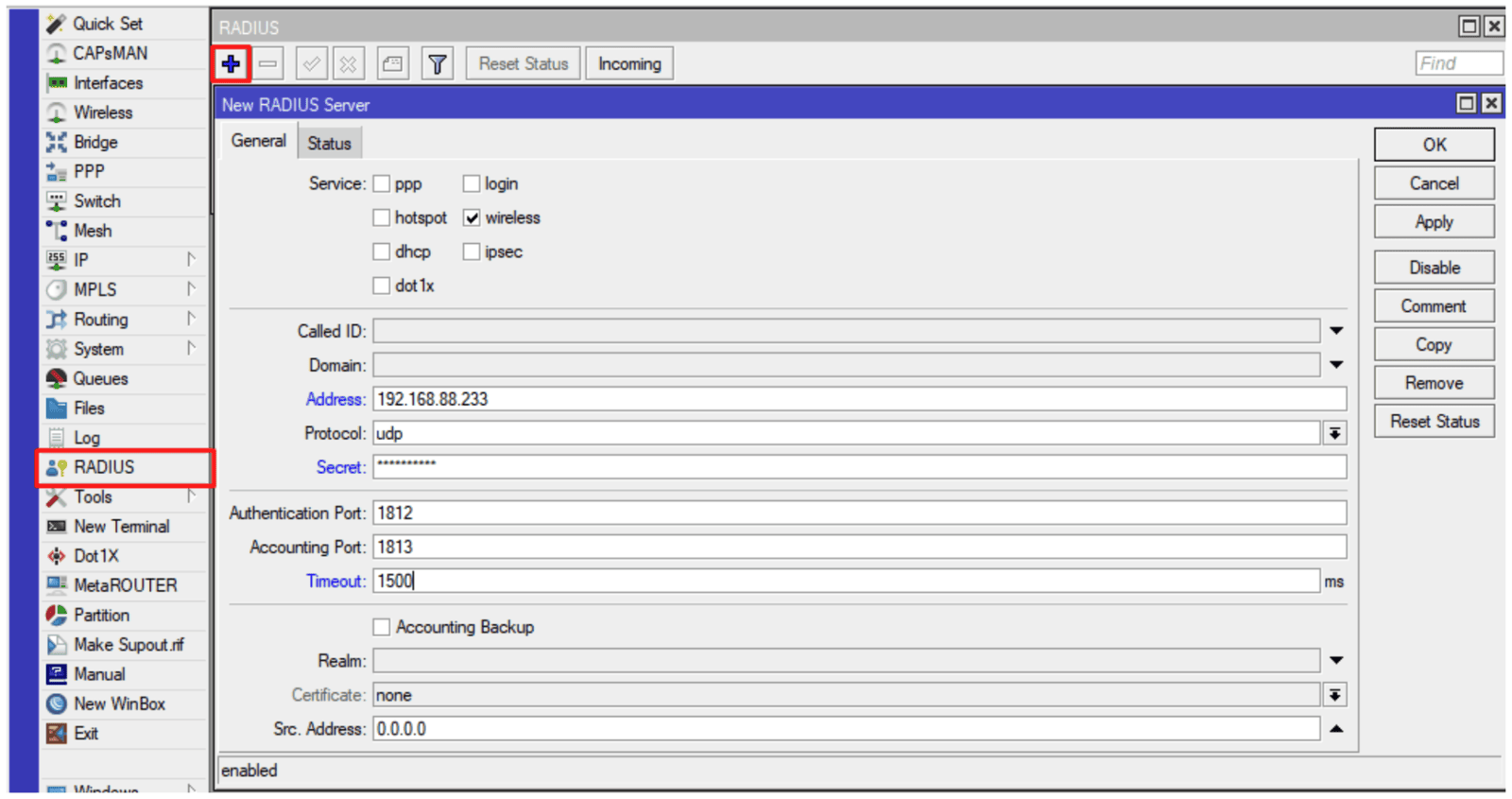

1) Configure the RADIUS client that points to assigned IronWiFi RADIUS servers

Command line equivalent is:

/radius add address=AAA.BBB.CCC.DDD authentication-port=XXXX
accounting-port=YYYY secret=yourSecret service=wireless
timeout=1500ms

The values must match the one displayed in the IronWiFi Management Console.

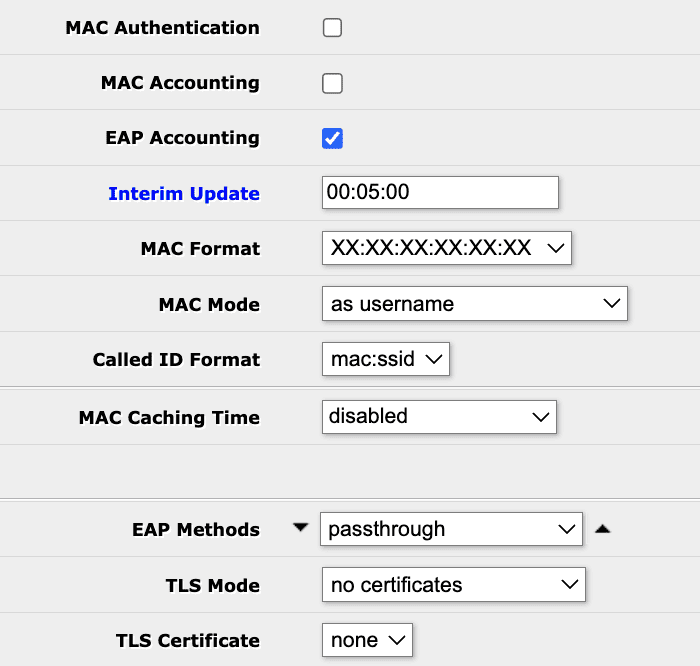

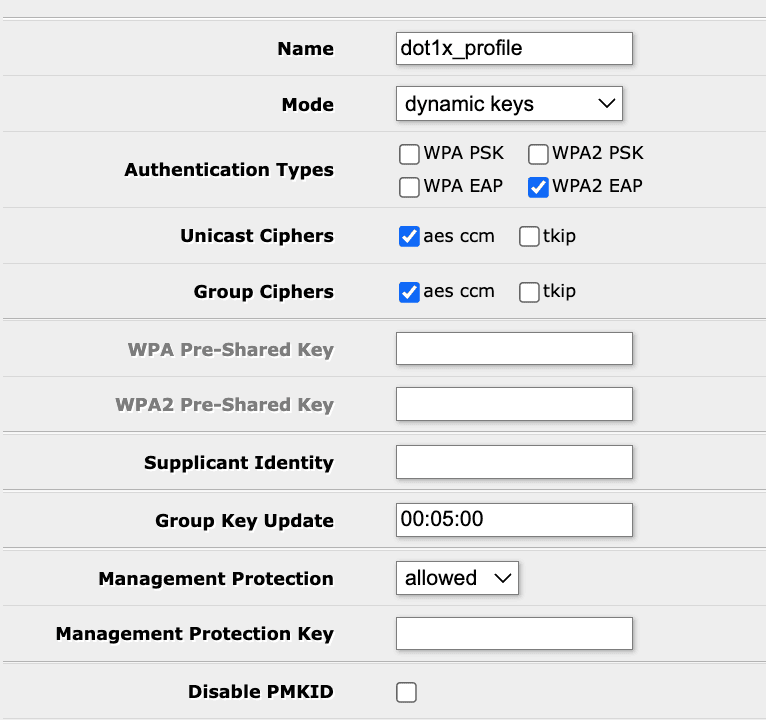

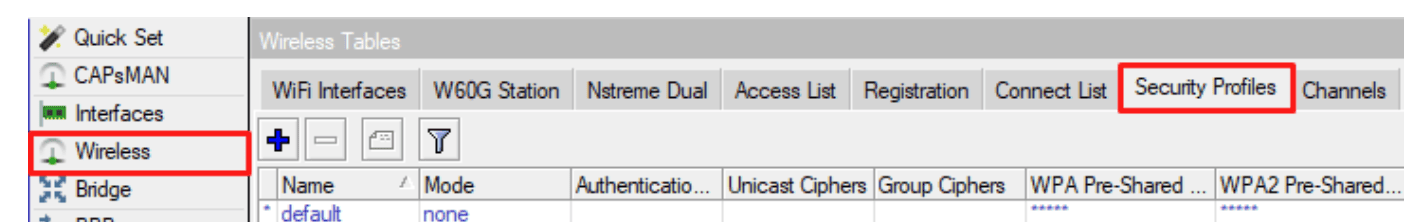

2) Create a wireless security profile that would perform 802.1x authentication

Command line equivalent is:

/interface wireless security-profiles add authentication-types=wpa2-eap
management-protection=allowed mode=dynamic-keys name=dot1x_profile
supplicant-identity="" radius-eap-accounting=yes eap-methods=passthrough
interim-update=300

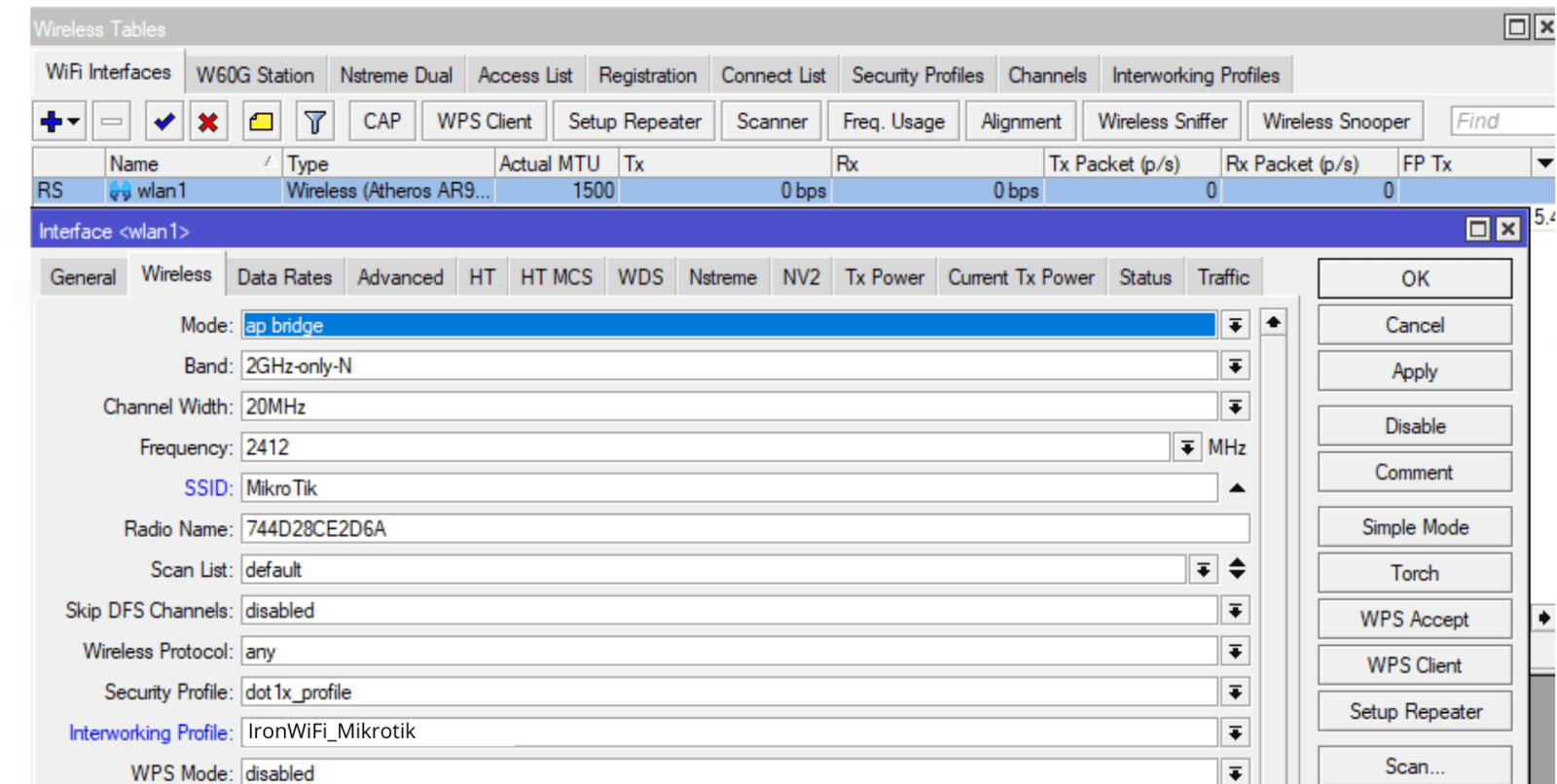

3) The next step is configuring the wireless interface and assigning the created security profile. Press “Advanced mode” to see all the options

Command line equivalent is:

/interface wireless set [ find default-name=wlan1 ] mode=ap-bridge
security-profile=dot1x_profile wps-mode=disabled

Make sure the correct country profile is configured. In this example, we are using “wlan1”, but the same command would work with other interfaces, or as

/interface wireless set wlan1

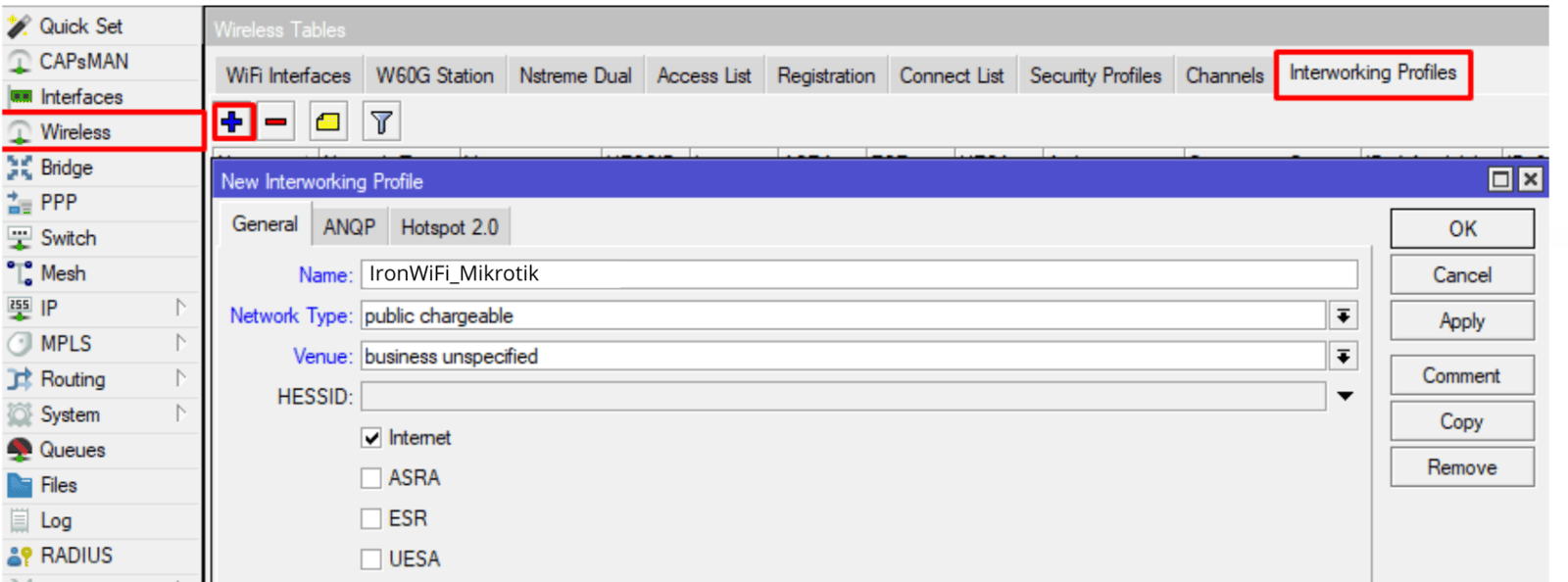

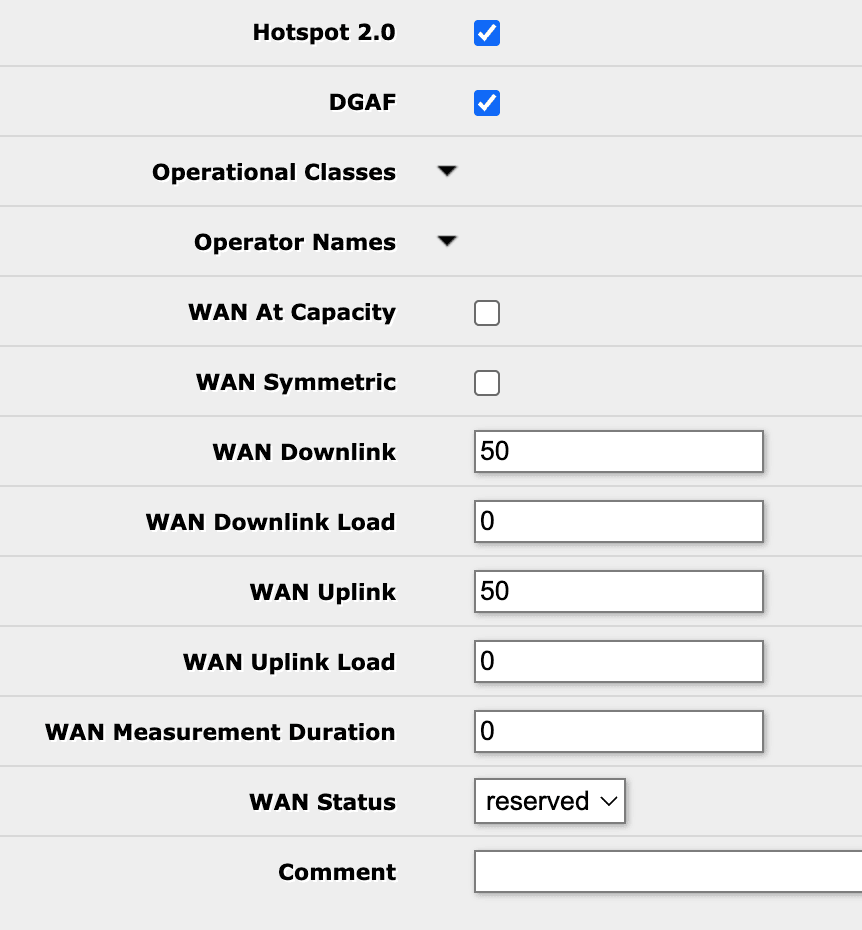

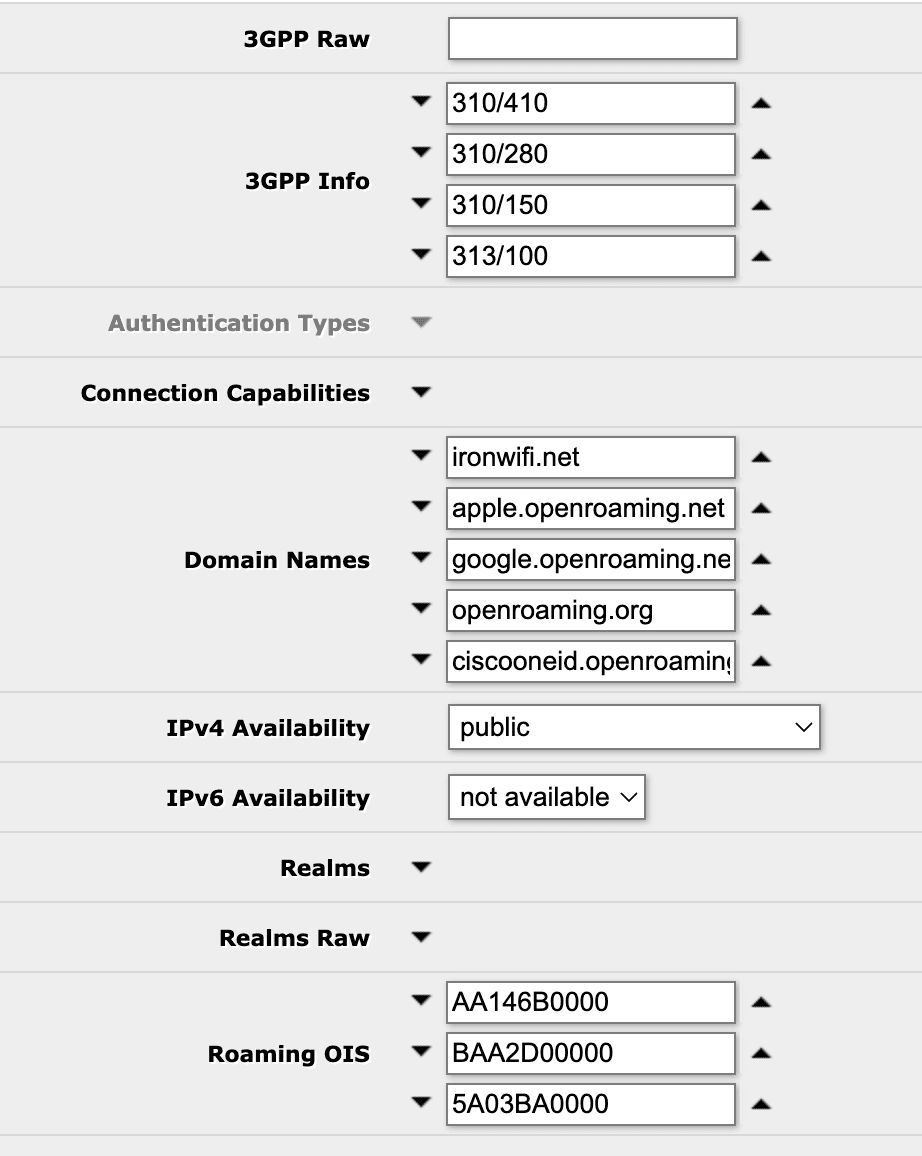

4) Configure interworking settings (Hotspot 2.0)

/interface wireless interworking-profile add
domain-names=ironwifi.net,apple.openroaming.net,google.openroaming.net,openroaming.org,ciscooneid.openroaming.net
ipv4-availability=public name=IronWiFi_MikroTik
network-type=public-chargeable operator-names=IronWiFi:eng
roaming-ois=AA146B0000,BAA2D00000,BA03BA0000,004096 venue=business-unspecified
venue-names=IronWiFi:eng wan-downlink=50 wan-uplink=50 wan-status=up
3gpp-info=310/410,310/280,310/150,313/100

5) Assign the interworking profile to the interface

This step can also be done with the following command:

/interface wireless set wlan1 interworking-profile=IronWiFi_MikroTik

Note: NAS-id that's used by IronWiFi to differentiate networks is equal to system identity, to adjust the nas-id, you can do:

/system identity set name=exampleName

Graphical interface support for interworking profiles is added from versions above 6.47.10, 6.48.3.

Troubleshooting

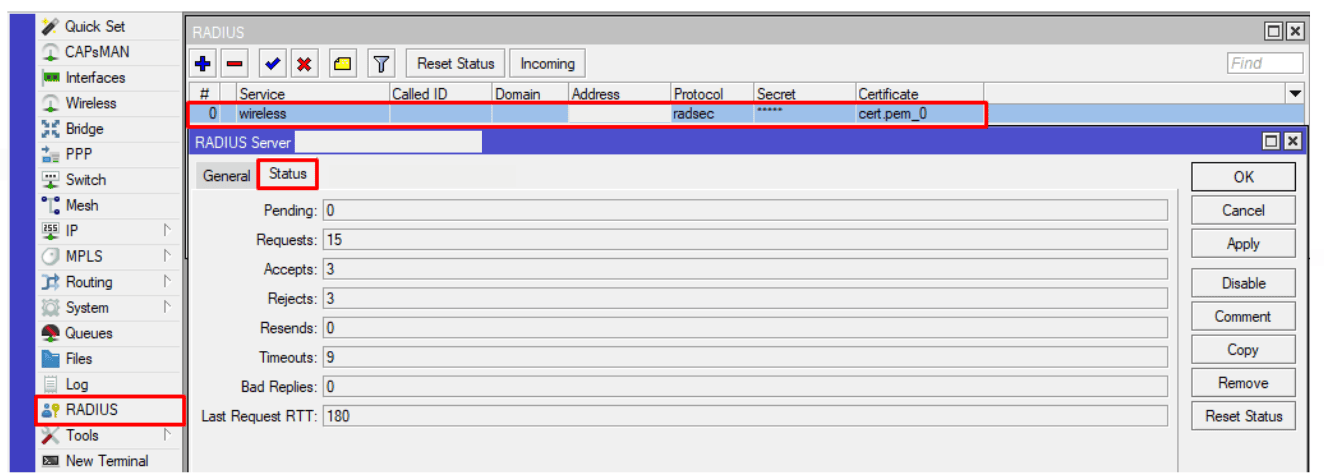

To check the status of RADIUS messages, you can use the RADIUS menu.

Or alternatively via the command line run:

/radius monitor X

X being the numerical ID, you can see the IDs with

/radius print

For more information, additional logging can be configured under

/system logging add topics=radius,debug,packet

You can view results under

/log

To view active wireless connections check the wireless registration table:

/interface wireless registration-table print
