Square

Square

Square Console Settings

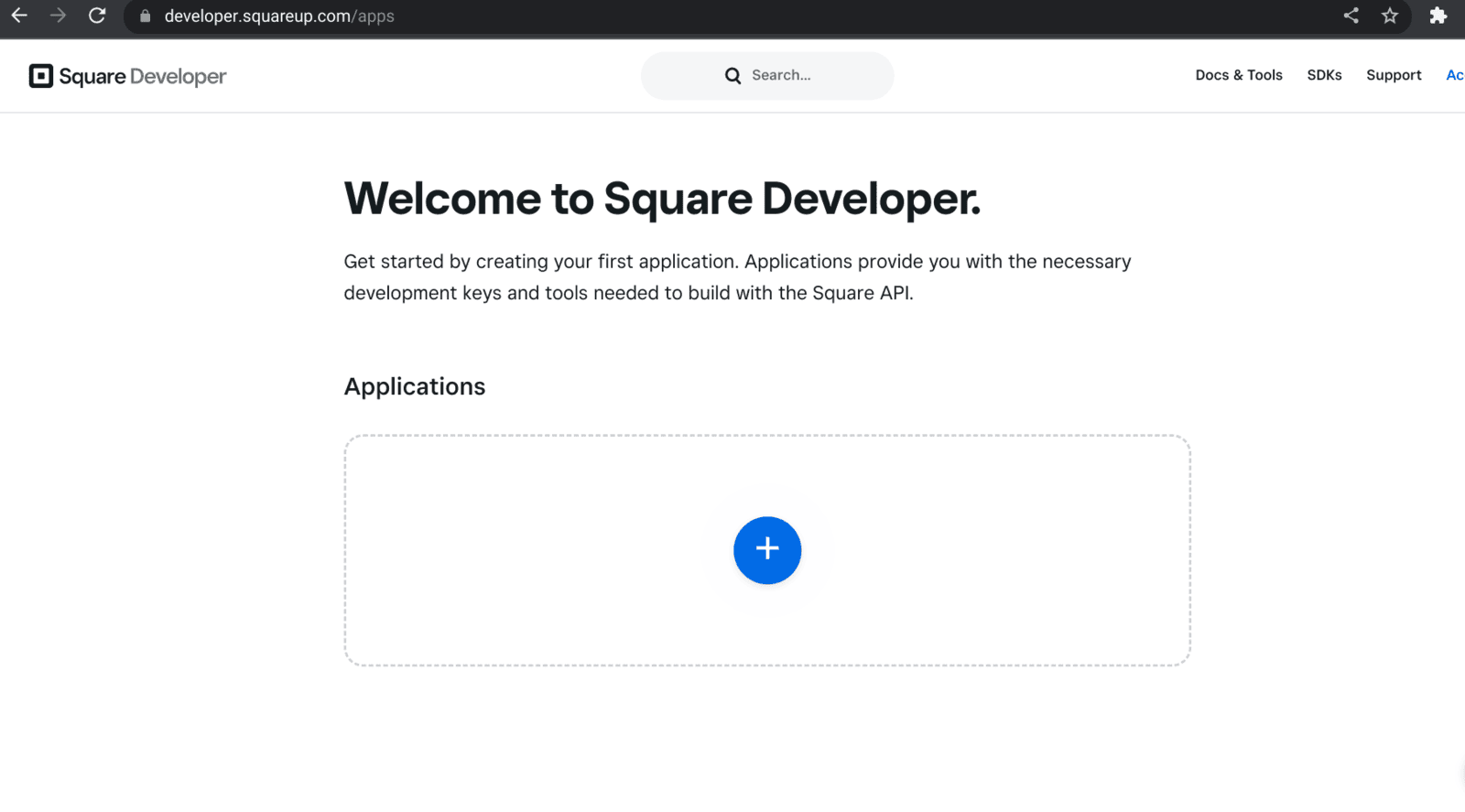

1. Navigate to your  Square  Developer account > https://developer.squareup.com/apps


Screenshot 2023-03-20 7.24.35 AM

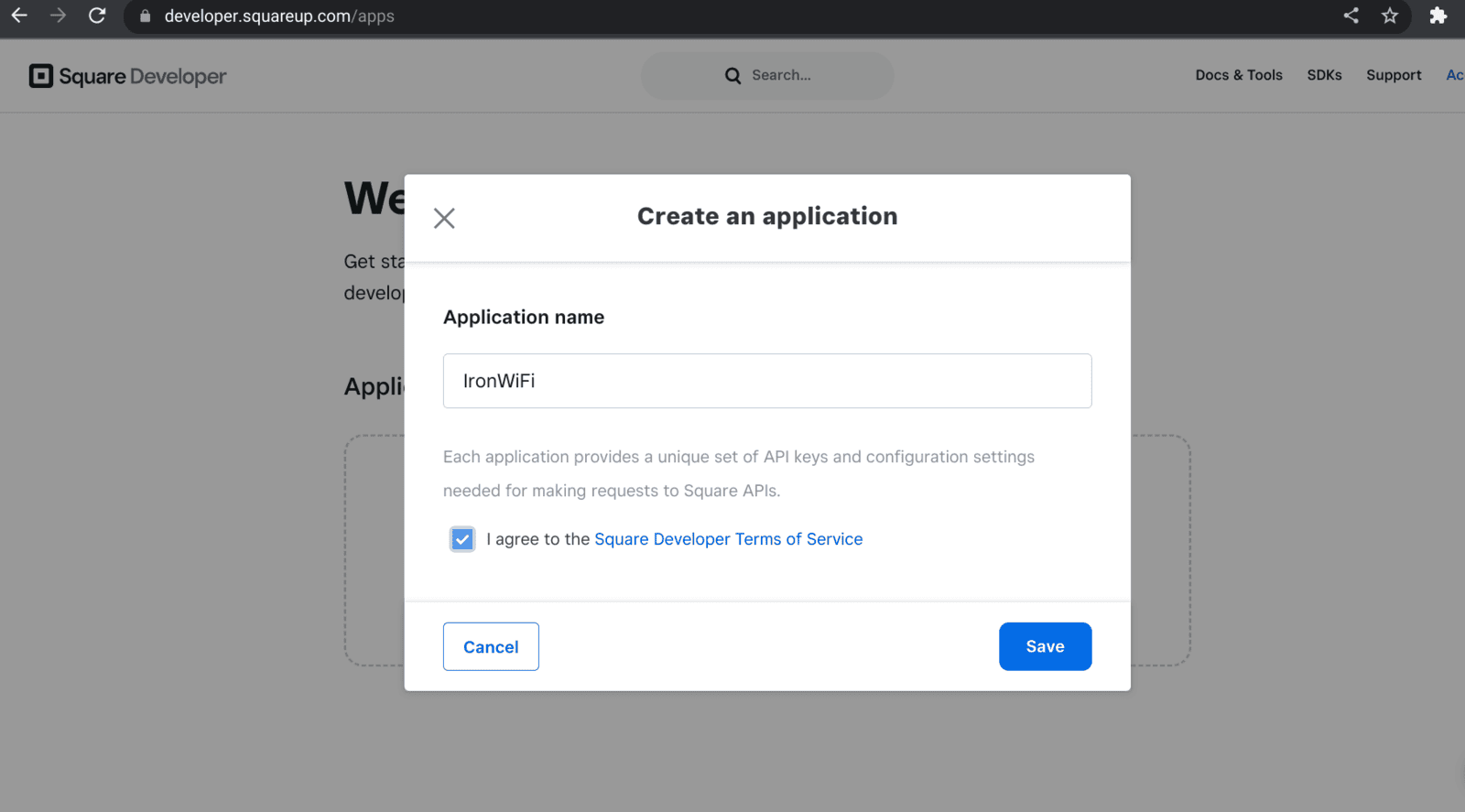

3. Click on "New Application" to create a new application in Square.

Screenshot 2023-03-20 7.24.55 AM


4. Enter the required details for your application, such as the name and description.

Screenshot 2023-03-20 7.27.16 AM

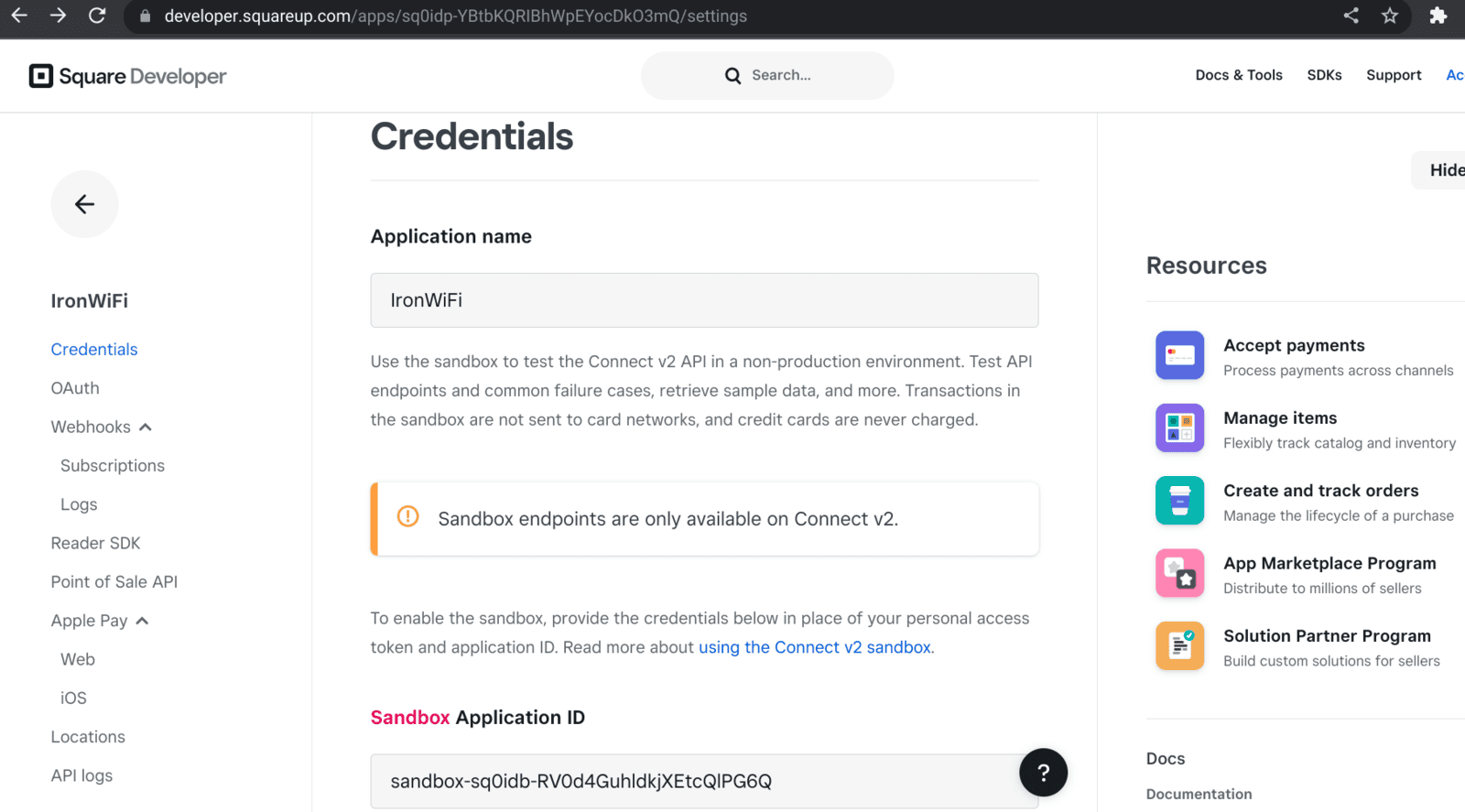

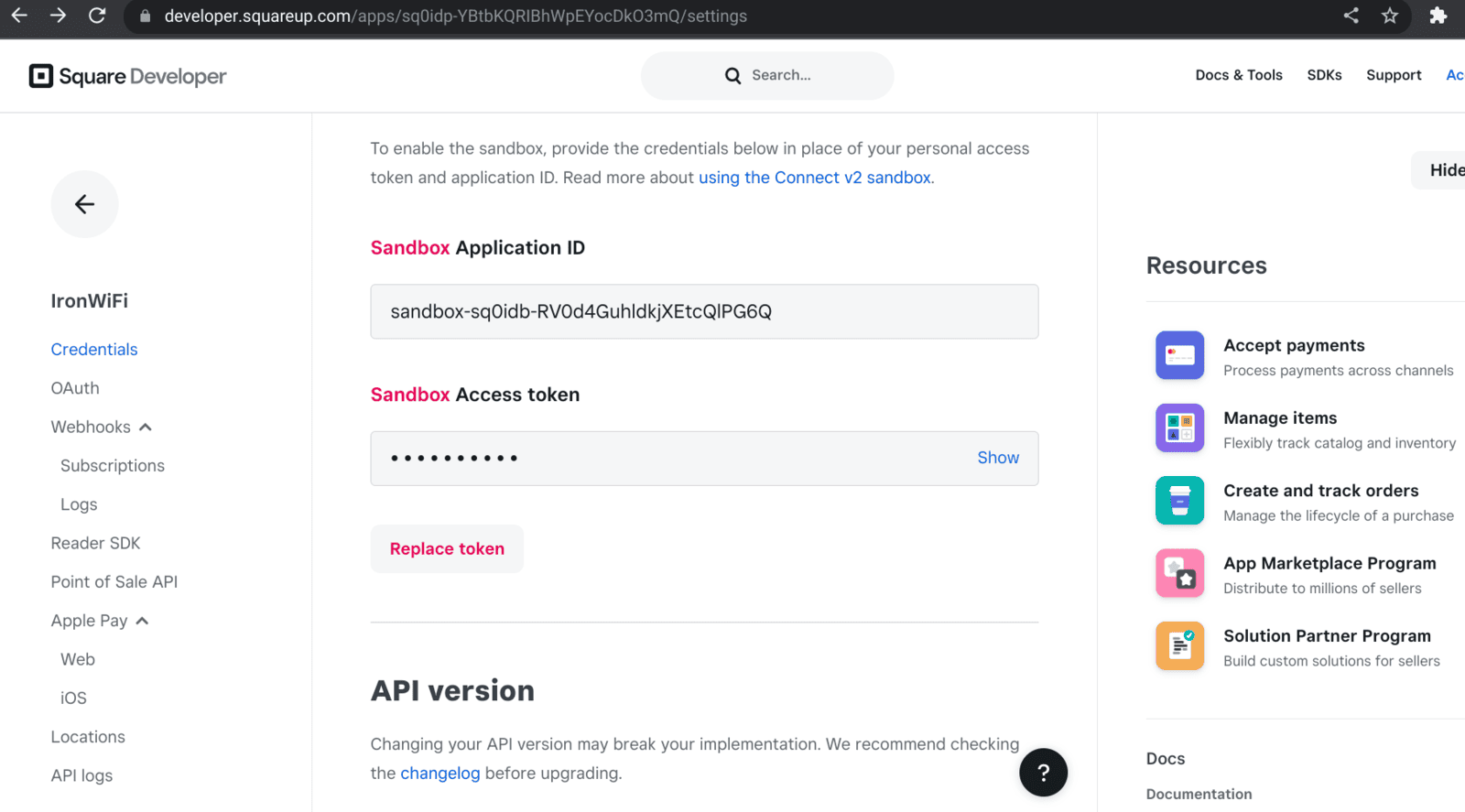

5. Once you have created your application, navigate to the "Credentials" section of the developer dashboard and generate your API credentials

Screenshot 2023-03-20 7.27.28 AM

Screenshot 2023-03-20 7.30.03 AM

IronWiFi Console Settings

6. Navigate to IronWiFi Console Networks > Captive Portals > Your Captive Portal > Authentication Providers

Screenshot 2023-03-16 12.29.58 PM

Screenshot 2023-03-16 12.30.15 PM

Screenshot 2023-03-16 12.30.51 PM



To accept payments through Square on the captive portal, you will need to create an authentication provider as well as hotspot plans that the visitors will be able to purchase.

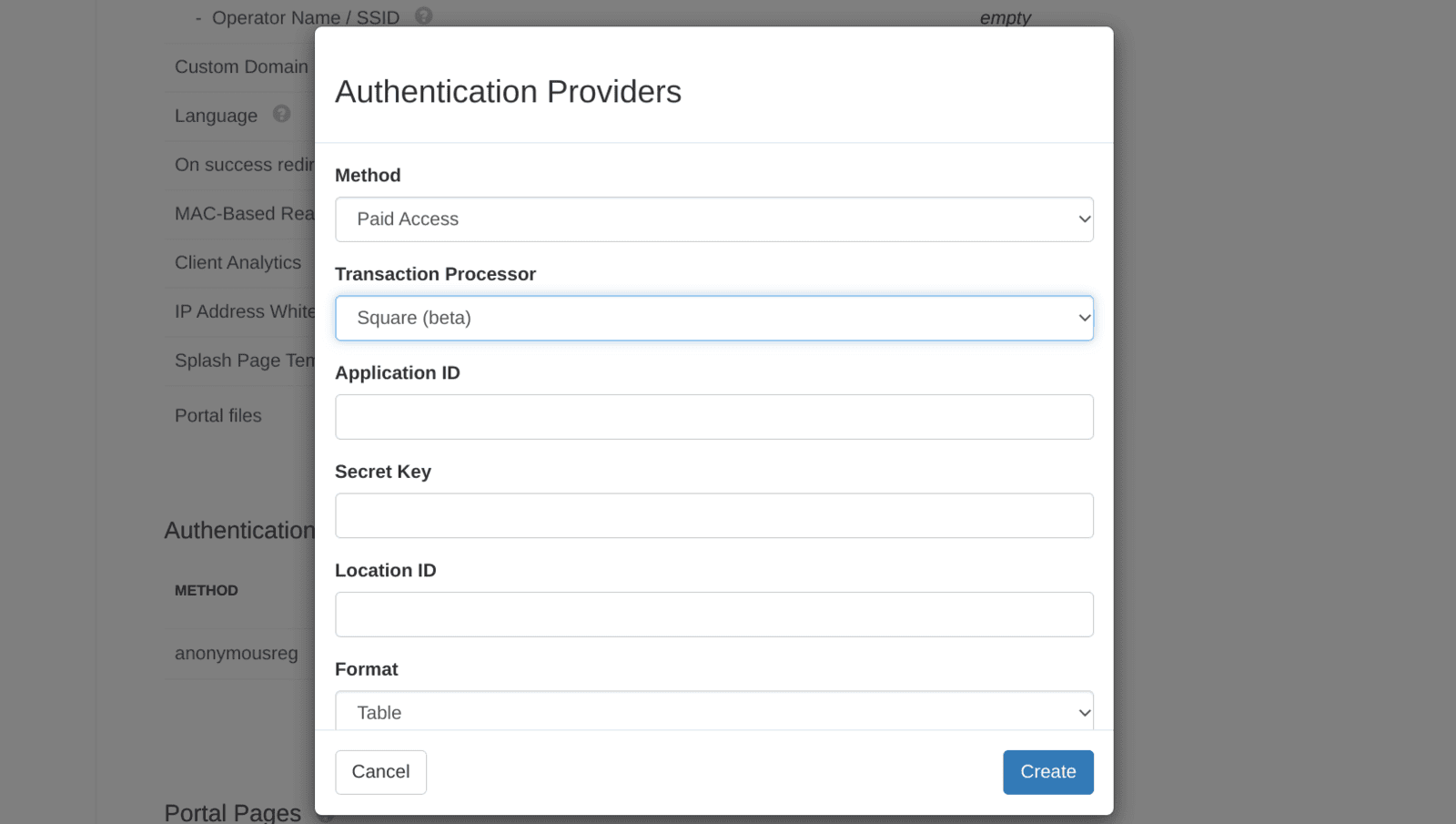

7. Click Add new, select Method -> Paid Access, Transaction Processor -> Square and enter application credentials from your Square app

Application ID - Get this value from your Square app

Secret Key - Get this value from your Square app

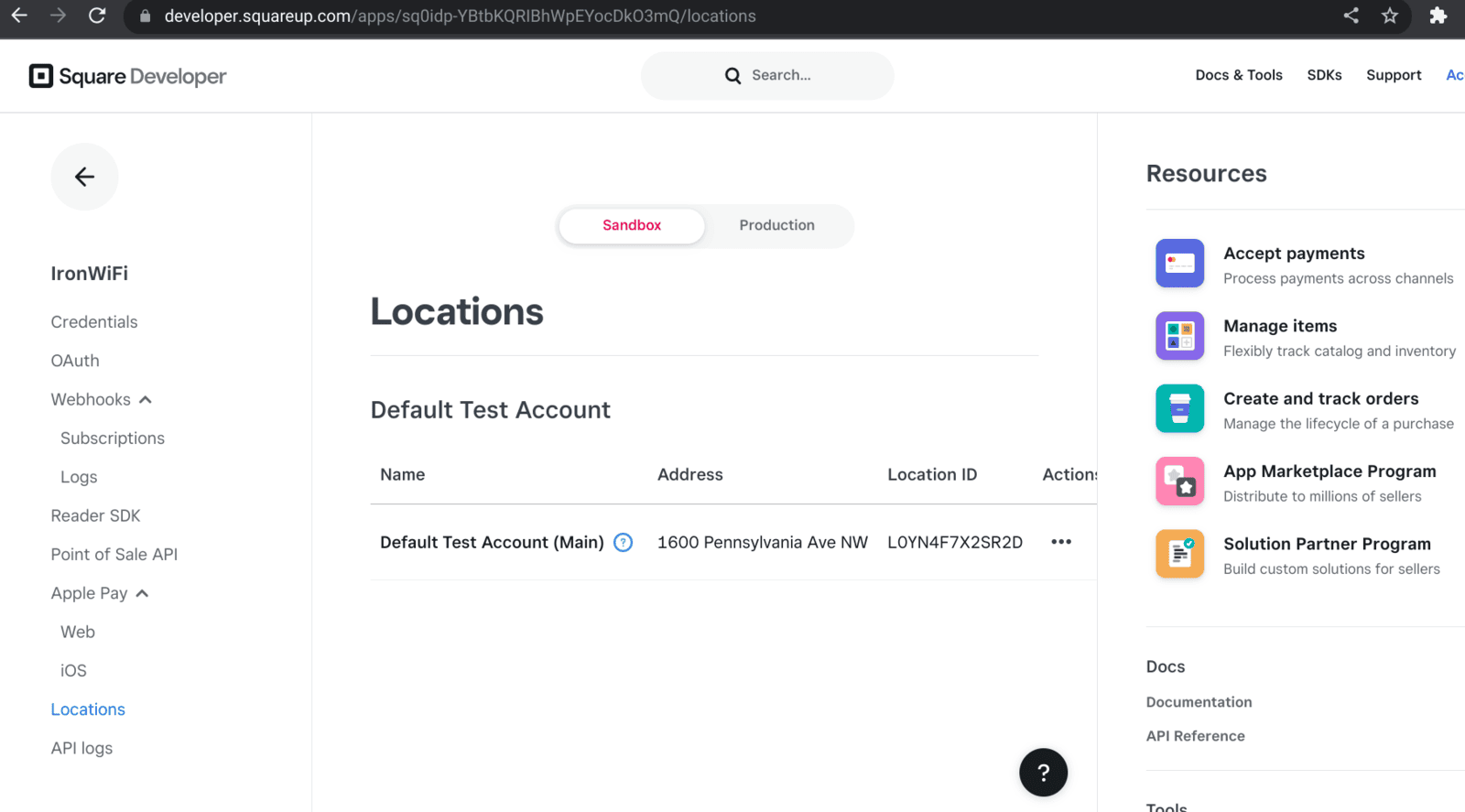

Location ID - Get this value from your Square app

Screenshot 2023-03-20 12.15.33 PM



8. Scroll down to Paid Access, and click Add a plan and create your plans.

Screenshot 2023-03-16 11.47.43 AM

Screenshot 2023-03-16 12.38.49 PM



9. Scroll up and test your Integration with Square

Screenshot 2023-03-17 12.14.46 PM
