This page explains the necessary configuration for Peplink Access Points and external Captive Portal with RADIUS authentication.

IronWiFi Console Configuration

1. Log into the IronWiFi console or register for free
2. Create a new network
3. After that, create a new captive portal, with vendor Peplink

Access Point Configuration

1. Sign in to the InControl control panel, find the Access Point -> Settings -> Remote Web Admin

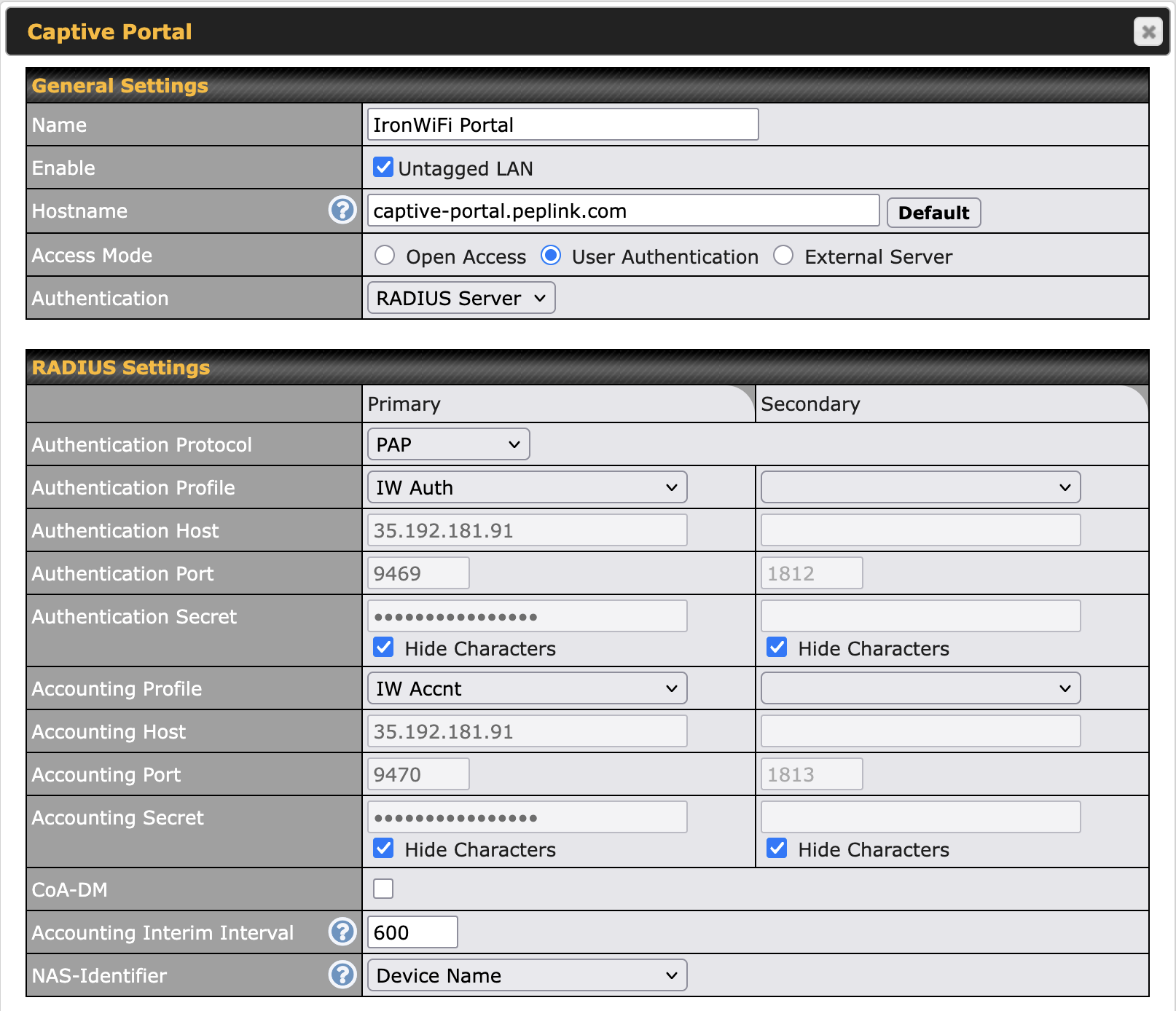

2. In the Access Point settings page, click on Network -> Captive Portal, and configure with:

• Hostname - captive-portal.peplink.com
• Access Mode - User Authentication
• Authentication - RADIUS Server
• Auth Server - get this value from the IronWiFi console
• Port - get this value from the IronWiFi console
• Auth Server Secret - get this value from the IronWiFi console
• CoA-DM - Disabled
• Accounting Server - get this value from the IronWiFi console
• Port - get this value from the IronWiFi console
• Accounting Server Secret - get this value from the IronWiFi console
• Accounting Interim Interval - 600 seconds

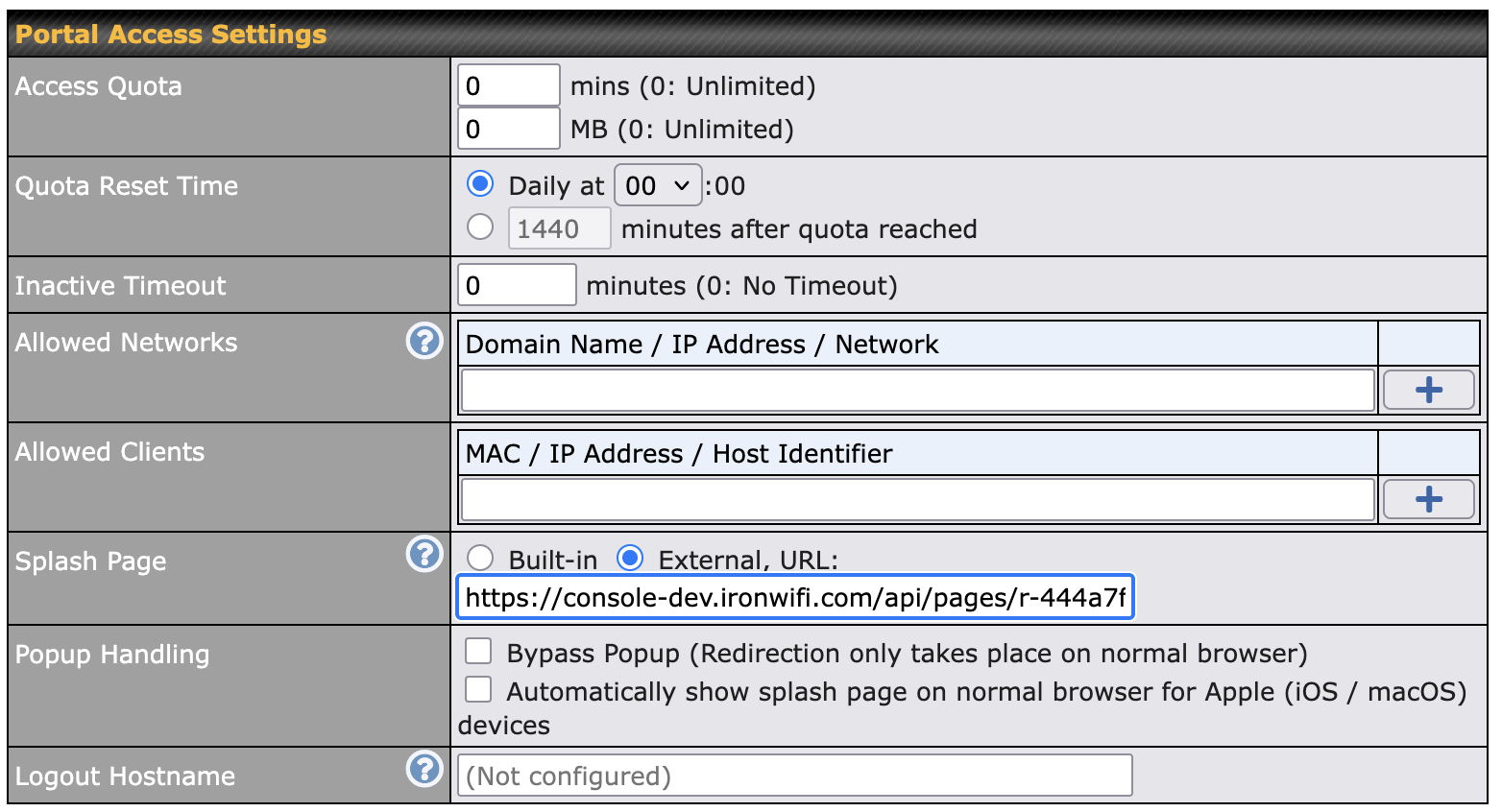

• Splash Page - External, URL: get this value from the IronWiFi console


Make sure that both checkboxes in the Popup Handling section are unchecked or you will not see the Captive Portal Assistant / will not be redirected to splash page automatically !

The configuration is now complete.
