How to Connect to Wi-Fi Using EAP-PEAP on Android

EAP-PEAP (Protected Extensible Authentication Protocol) is a secure Wi-Fi authentication method that uses a TLS tunnel to protect username and password credentials. It is widely supported on Android devices.

Requirements

  • Network SSID (Wi-Fi name)
  • Username and password (provided by your network admin)
  • Optional: CA certificate (if certificate validation is enforced)

Step-by-Step Instructions

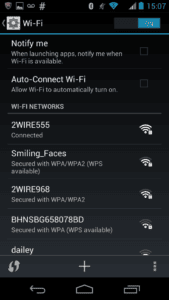

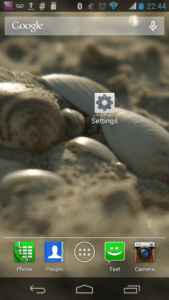

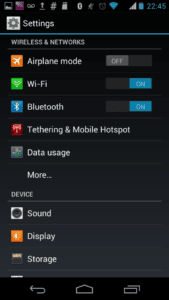

  1. Go to Settings > Network & Internet > Wi-Fi.
  2. Select your Wi-Fi network or tap Add network.
  3. Tap Advanced options to expand security settings.
  4. Configure the following options:

Wi-Fi Configuration for EAP-PEAP

  • EAP method: PEAP
  • Phase 2 authentication: MSCHAPV2
  • CA certificate: Use system certificates (recommended) or Do not validate if testing
  • Domain: (if validating certs) radius.ironwifi.com

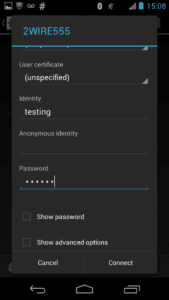

  • Identity: Your username (e.g., email or login ID)
  • Anonymous identity: Optional, e.g., anonymous@example.com
  • Password: Your account password

Once everything is set, tap Connect.

Troubleshooting Tips

  • Make sure your username and password are correct.
  • If the device shows “Connected, no internet,” the RADIUS server may be rejecting credentials.
  • Ensure the RADIUS certificate is valid and includes the correct domain (for Android 11+).

Security Note

EAP-PEAP provides strong encryption by creating a TLS tunnel before transmitting your credentials. Always prefer certificate validation to prevent rogue network attacks.
